Cartridge Filtration
Security Filter Housing
Model: JTGRP
Brand: JHENTEN
JTGRP Security Filter is mainly designed for water treatment field.
JTGRP Security Filter Housing use many times polishing process, ensure that the liquid contact surface roughness Ra≤0.4um,compliance with GMP/FDA requirement , the filter surface is mirror polished. It can be applied in high precision liquid filtration.
Feature
The material liquid contact surface roughness Ra≤0.4um,compliance with GMP/FDA requirement
The filter housing have top and bottom drain valve, drainage convenient and quickly
Cartridge sealing surface using spring type sealing. It's easy to Operating
Application
Water Finish: R.O reverse osmosis filtration for drinking water
Food and beverage industry: wine, mineral water, drinking water filtration
Surface Finish
Treatment Type |
Mechanical polishing, electrolytic |
Polishing precision |
Inner surface Ra≤0.6μm , |
Operating Conditions
Max Operating pressure | 0.6MPa |
Max Operating Temp. | 140℃ |
Material
Filter shell | 304, 316L |
Drain valve | 304, 316L |
Eyebolt | 304 |
Stabilizer blade | 304 |
O-ring | EPDM, PTFE, Viton, Silicone |
Connection
Shell connection | Tri-clamp |
In-outlet N1, N2 | Tri-clamp, flange, thread |
Pressure gauge N3 (optional) | 1.5” tri-clamp |
Drain valve N4, N5(optional) | 1” tri-clamp |
Cartridges connection | DOE type, 222 type |

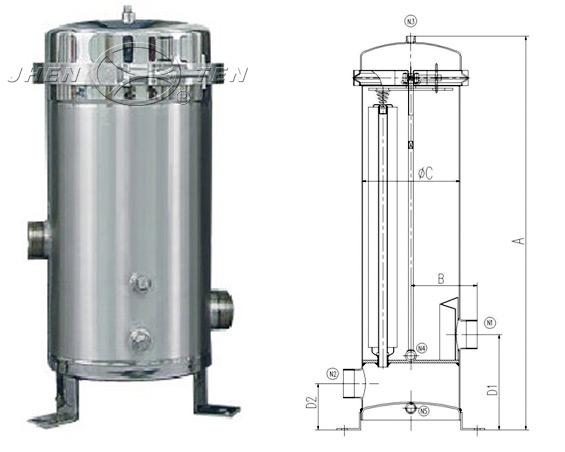

Dimension Parameters | 5pcs(4pcs) | |||
10” | 20” | 30” | 40” | |
A：Total height ( excluding pressure gauge) | 570 | 820 | 1070 | 1320 |
B：The distance from inlet to center | 175(flange)；125( quick-open)；130(screw thread) | |||
C：Diameter | Φ204 | |||
D1: Inlet N1 height fromthe ground | 178 | |||
D2：Outlet N2 height from theground | 76 | |||
In-outlet N1, N2 dimension | 2” | |||
7pcs | ||
20” | 30” | 40” |
820 | 1070 | 1320 |
190(flange)；140(quick-open)；145(screw thread) | ||
Φ235 | ||
178 | ||
76 | ||
2” | ||
The above-mentioned data is the standard, it can customize according tocustomer's requirements.
Selection Table
［Qty. of cartridge］ | ［Model of cartridge］ | ［Cartridges connection］ | ［Shell material］ | ［In-outlet Connection］ | ［O-ring］ | |
JTGRP | 7R | 20 | S | 4 | L | E |
5R=5pcs | 10=10” cartridge | S=226 type | 4= 304 | F= flange | E=EPDM | |
7R=7pcs | 20=20” cartridge | T=222 type | 6= 316L | K=Tri-clamp | P=PTFE | |
9R=9pcs | 30=30” cartridge | D=DOE type | L= thread | V=Viton | ||
15R=15pcs | 40=40” cartridge | S=Silicone |
